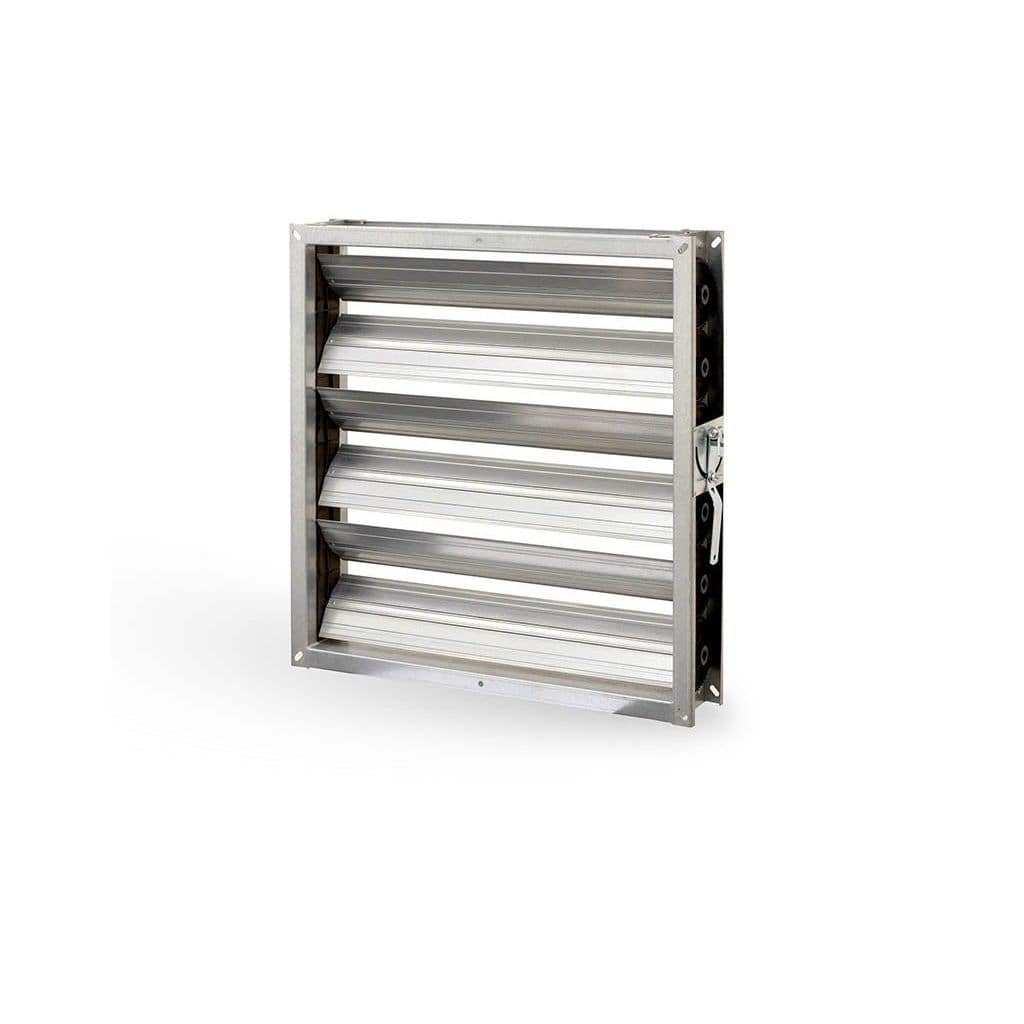

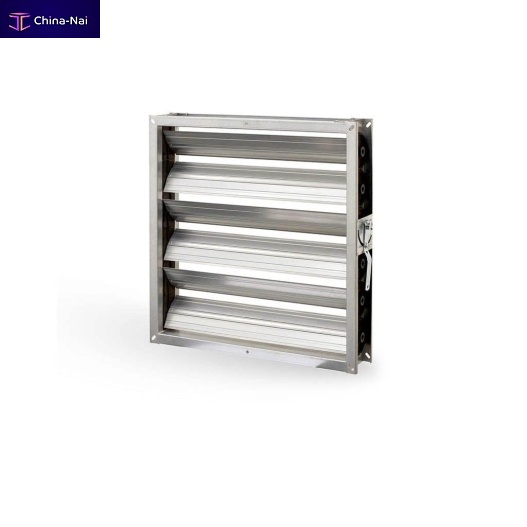

Damper PWII

PWII Multi-Blade Dampers are used for both air flow rate regulation and air flow cut-off in the rectangular duct systems. They can also be installed in air handling units or walls. They have the backward blades. They can operate between -20°C and +90°C. If they are controlled with an actuator, the operating temperature is between -20°C and +50°C. They have the Hygiene Certificate with HK/K/0841/03/2017 number. PWII Multi-Blade Dampers can be made up of various materials depending on the type. PWII-O type Multi-Blade Dampers consist of galvanized steel profiled housings and shutters. PWII-U type Multi-Blade Dampers consist of galvanized steel profiled housings and aluminum profiled shutters. PWII-N and PWII-M type Multi-Blade Dampers consist of stainless steel sheet housings and shutters. The housings can also be powder coated. While PWII-O and PWII-N type Multi-Blade Dampers create low air pressure drop when they are open, PWII-U and PWII-M type Multi-Blade Dampers also enable air tightness when they are closed. The standard size is as the following for A x B dimensions up to 1000 x 1005 mm;

A – any dimension,
B – Number of blades x 100 mm + 5 mm
PWII Multi-Blade Dampers can be controlled manually or automatically by an actuator.

Suitable for rectangular duct systems
Can be installed in air handling units or walls
Backward blades
Operating temperature between -20°C and +90°C
Operating temperature -20°C and +50°C for the actuator version
Having a Hygiene Certificate
Stainless steel sheet and galvanized steel sheet housings
Aluminum, stainless and galvanized profiled shutters
The bearings and gears made up of PP polypropylene
Minimum air pressure drop while open
