Tension rod

Features
Application: faade, glass roof, canopy…
Standard range, tailor-made possibility

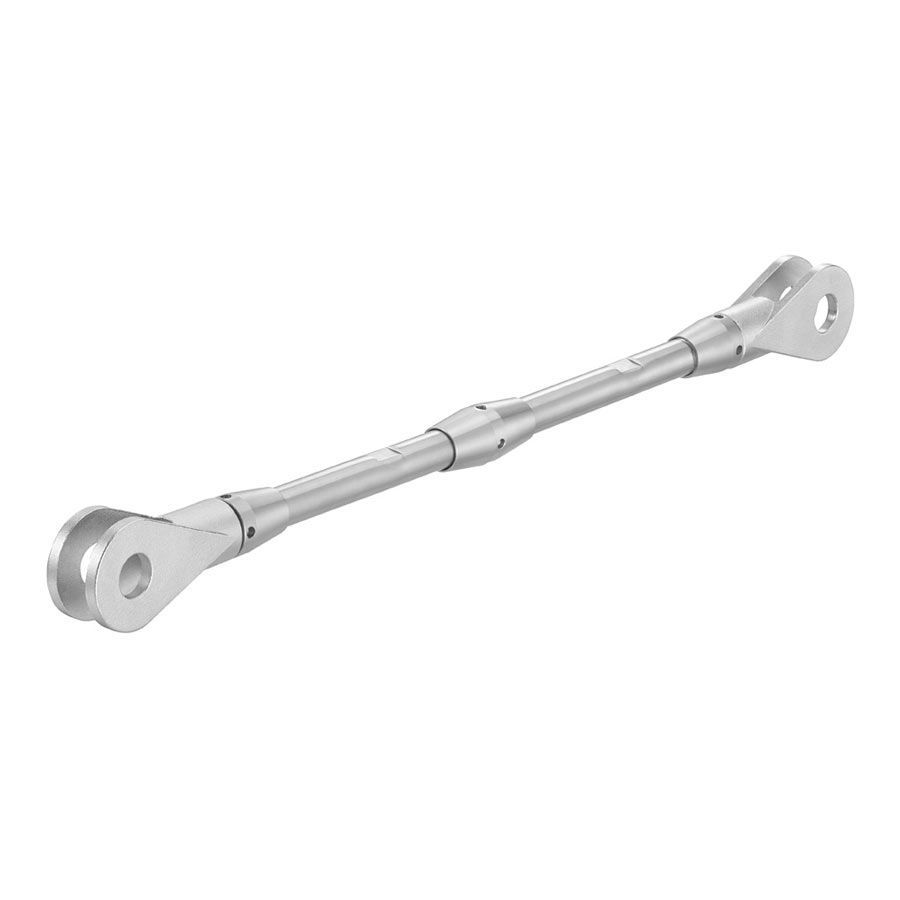

Complete range included: Tension rod, fork, nut, pin sets, circlips, coupler

Dimensions / Type* Tailored products and solutions on demand
M08 M10 M12 M14 M16 M18 M20 M22 M24

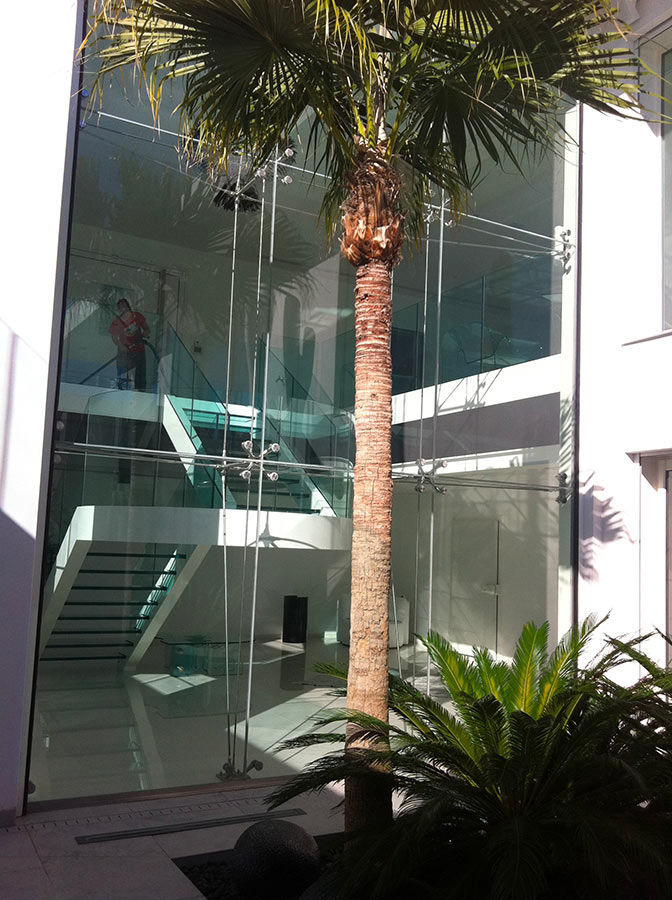

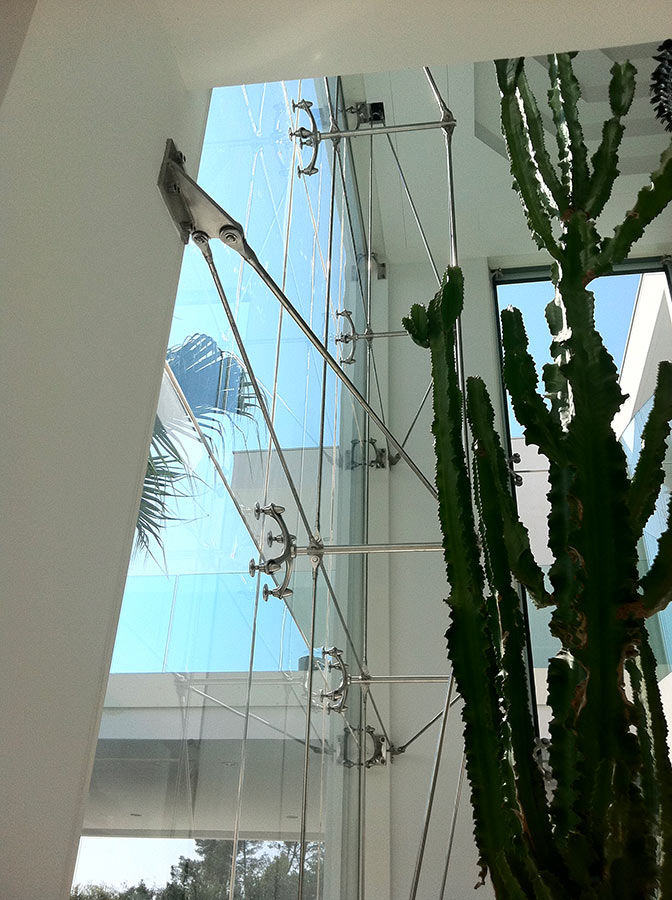

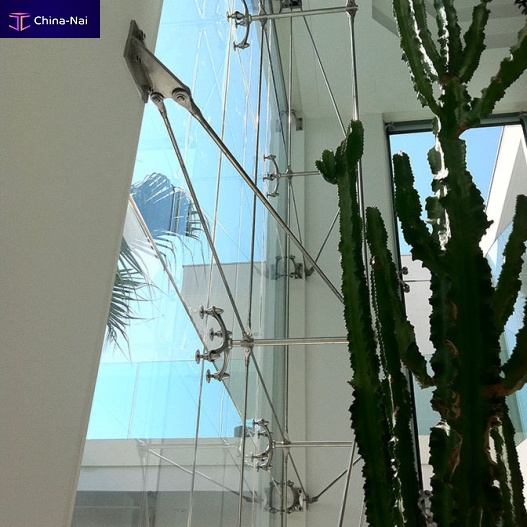

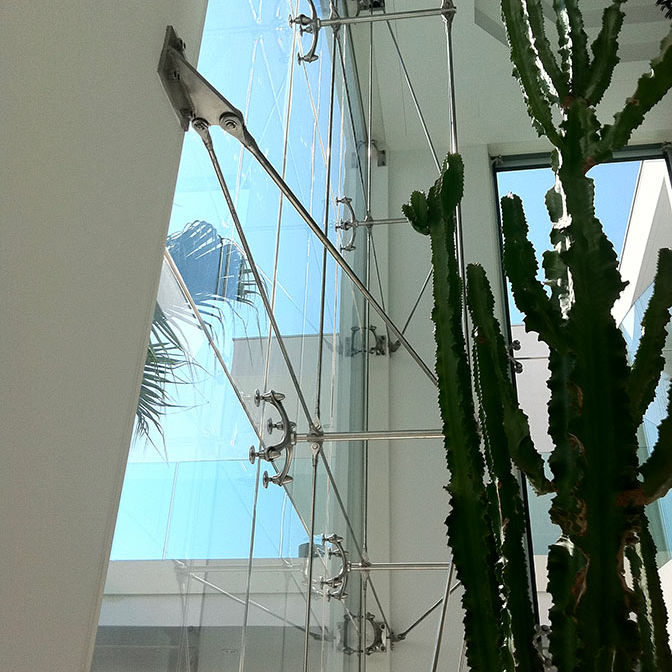

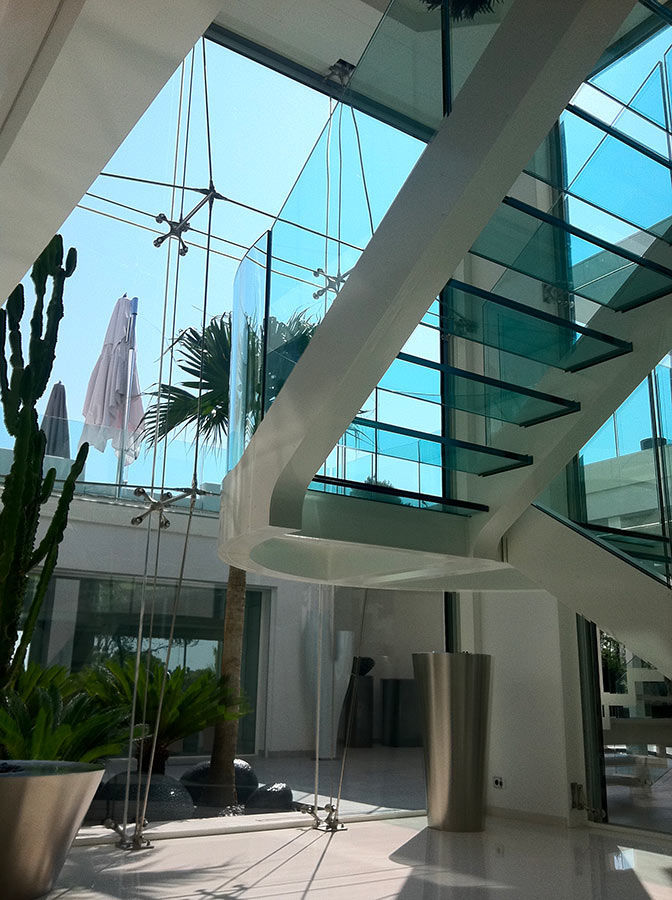

SADEV supplies you with a wide range of tension rods to be used for your faade, canopy or glass roof project.
These 316 stainless steel fittings help to strengthen the structure.

The rods are available in 9 sizes and bars 1 single length up to 3m, sleeved beyond.

Ø 10 to 12 mm standard range, 1000 to 2000 mm length.
Ø 10 to 24 mm tailor-made solution.

Material: stainless steel AISI 316 – X2CrNiMo17-12-2 according EN 10088-3 – Marine quality.
Elastic limit = Rp0,2% = 355 N/mm²
Tensile strength = Rm = 700 N/mm²

You can also order either separate parts or the whole kit including fork, tension rod, pin set, circlips and coupler.
