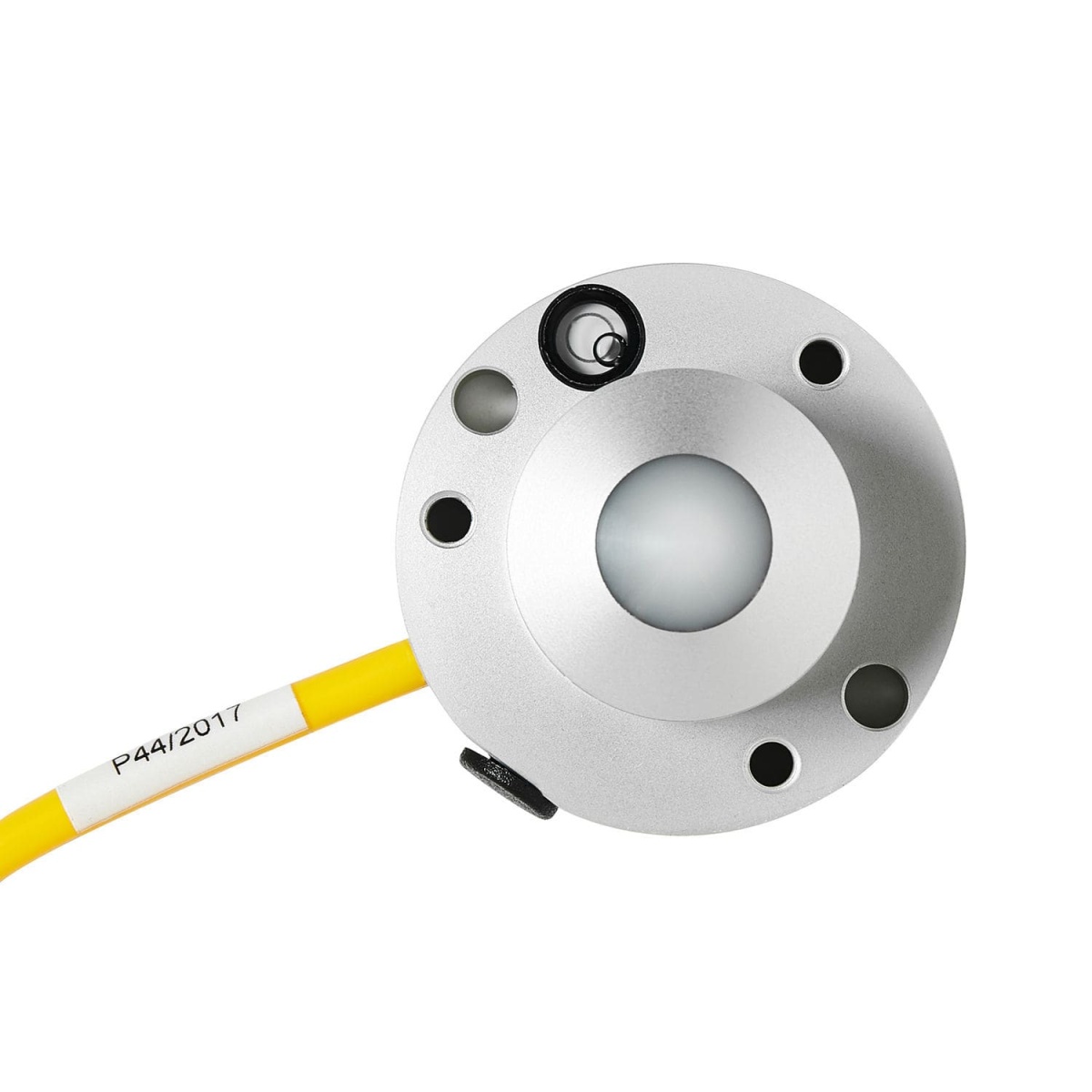

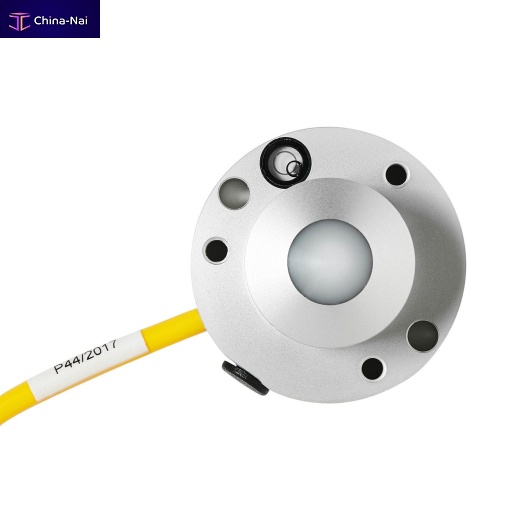

Pyranometer TBSSR1

The TBSSR1 is based on the popular SP- Lite2 pyranometer of Kipp&Zonen. It contains a SDI-12 interface / data acquisition board potted inside a cavity in the base of the housing. Consequently the TBSSR1 comes in exactly the same form factor as the original SP- Lite2. The sensor offers a resolution of 0,25W/m2. It is already calibrated to the individual sensitivity of the SP Lite2.

SPECIFICATIONS

Spectral range: 400 to 1100nm
Measurement range: 9 to 1200W/m2
Directional error (up to 80° with 1000W/m2 beam): < 10W/m2
Field of view: 180°
Temperature compensated
Measurement response: 1 sec
SDI-12 Standard V1.3
Plug and Play
6 – 16V supply voltage
Less than 40µA idle current
Weight: 0,12kg
Excellent price-performance ratio

TARGET APPLICATIONS

SDI-12 Sensor Networks
