Impeller pump G1275waterpolymerslurry

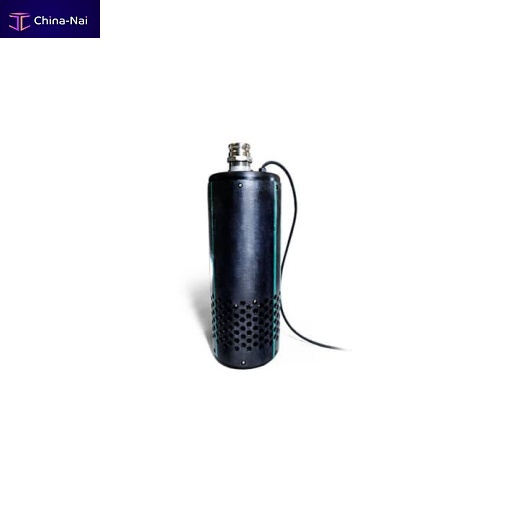

Torpedo Pump G1275
CLAW THROUGH THE TOUGHEST SITUATIONS WITHOUT FAIL

QED G1275 slurry and solids pumps are built to handle conditions which make other pumps fail. Constructed of stainless steel and fitted with heavy duty bearings and seals, the G1275 pump is a large body pump with the ability to create a powerful stirring motion in the influent stream to allow slurries and solids to pass through. The hardened, high chrome impeller assembly can easily pass solids which would stall lesser pumps in their tracks.
Key Specifications

Cast iron agitator
Hardened Impeller with powerful stirring action
HDPE encapsulated body, stainless steel water jacket and polymer power cable
Smooth pump body design
Powerful 5 HP (3.8 kw) motor

Benefits

Easy pumping of silt, slurries and solids
Abrasion resistance for long life in aggressive applications
Suitable for corrosive environments
Slides easily in pipe without the need for wheels or other guide devices
Strong enough to pump silt, slurries and solid contaminants


Key Specifications

Case dimensions: 34" x 13.25" (865 x 335 mm)
Weight: 115 lbs (53 kg)
Maximum head: 90 feet (23 meters)
Maximum flow: 250 gpm (945 lpm)
Pump Power: 5 hp (3.8 kw)
Pump outlet: 3 inches ID (80 mm)
Solids pumping capacity: 0.5 inches (12 mm)
