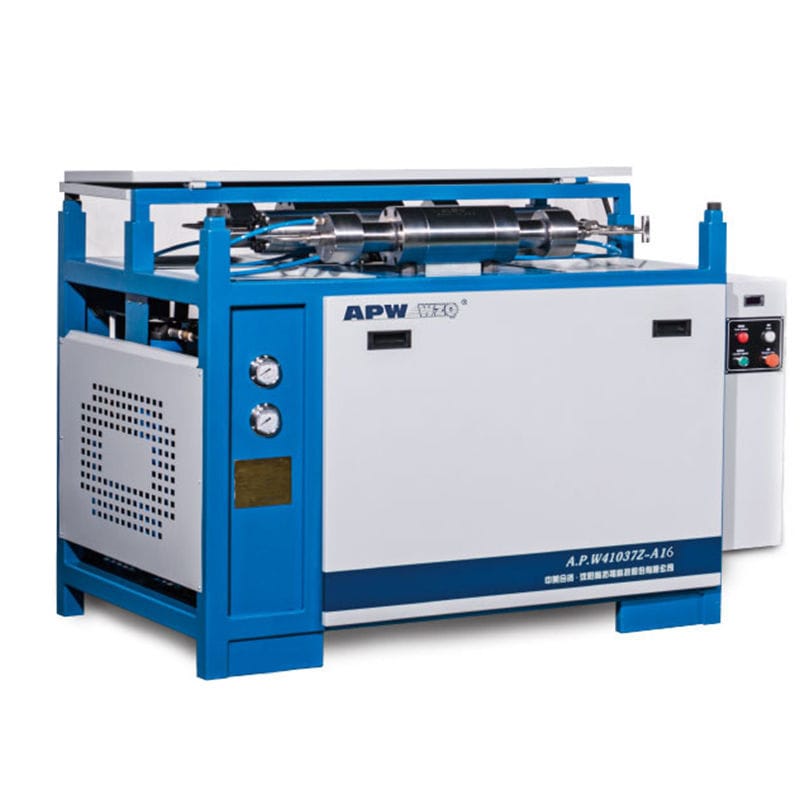

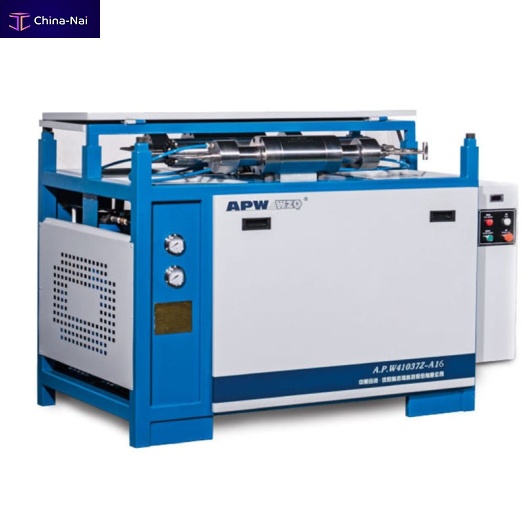

Water pump A16oilelectricindustrial

Intensifier is the heart of waterjet. It gives waterjet life. APW A16 intensifier pump is a miracle and it realizes the dream of every waterjet users whoever used, maintained or researched waterjet.
APW waterjet integrated SIEMENS motor, imports REXROTH hydraulic Pump and hydraulic valves assembly, American A&V Intensifier, American high pressure tube and stainless steel water tank.

A16 Pump System Parameter
Power: 50hp (37kw)
Max. Cutting Pressure: 60000PSI (413.685MPa)
Max. Water Flow Rate: 1.0gpm (3.8lpm) (55,000PSI/380MPa)
Max. Orifice Diameter (0.33mm)
Control Power Supply: DC24V; 10Ampa DC
Working Power Supply: 380V/50Hz
Max. Noise Level: 75db (A)
Working Temp. 40°F(5°C) ~ 104°F(40°C)
Storage Temp. 36°F(2°C) ~ 104°F(40°C)
Length: 1715mm
Width: 1035mm
Height: 1191mm
Gross Weight: 2410lbs (1085kg)

Cutting Water Supply System
Min Cutting Water Supply Flow Rate: 4gpm (15.1lpm)
Min Cutting Water Supply Pressure: 35PSI (0.24MPa)
Attenuator Volume: 1.2L Hydraulic System
Max. Hydraulic Pressure: 2900PSI (20MPa)
Hydraulic Oil Tank Volume: 30Gal. (114L)

Cooling System
Min. Cooling Water Supply Flow Rate: 3gpm (11.4lpm)
Min. Cooling Water Supply Pressure: 0.3MPa
